Schurter V-Lock IEC C13 & C19 Cordsets
SCHURTER V-Lock IEC appliance couplers use an interlocking pin to prevent power plugs from being pulled out unintentionally.
- Most cost-effective protection against unintentional unplugging on the market
- No extra assembly or additional components required
- Simple, obvious operation
- Available for 10 A and 16 A IEC connectors, and for power interconnection cords
- Protection class I and II
Product Description
SCHURTER’s V-Lock IEC appliance couplers offer a simple, attractive solution to the risk of unintentional unplugging of equipment. When it comes to medical analysis, diagnosis or laboratory equipment, portable instruments, professional A/V applications or equipment in the foodstuffs industry, the loss of power can have serious consequences. The problem is particularly acute with electrical equipment that can be moved while in operation, with the risk that the power cord can be unintentionally pulled out of the unit.
Plug-retention safeguards can prevent this. Conventional plug-retention systems consist of safety brackets mounted on the power plug. Depending on the type of equipment and because of the many types and shapes of power sockets they have, it is important to select the correct bracket shape.

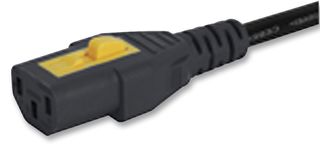

With V-Lock, the power connector is equipped with a pin that interlocks with a special notch in the inlet on the power cord and thus reliably prevents the cord from being pulled out unintentionally.
The advantage of this scheme is that no clamping system specific to a unit’s power inlet or retaining bracket must be adapted and attached.
The lock is released by pressing a finger on the disengaging lever. This lever is easily identified due to its bright yellow color, a feature that also distinguishes this scheme from conventional pluggable power supply systems.
The extraction force is at least 200 N.
A variety of inlet and outlet types, Power Entry Modules and numerous country-specific power cords are available with this feature. The V-Lock locking system can be integrated into power couplings in compliance with IEC 60320 for 10 A and 16 A.
Time-saving advantage
No need for clamping systems or retaining brackets to be attached to socket and power cord.
Secure power
Unique V-Lock locking system prevents the power cord from being disconnected unintentionally.
Medical versions
Transparent Nema 5-15 hospital grade plug & white power cord also available.
Contract pricing display is unavailable at the moment. Prices shown are standard retail prices, orders placed will have contract pricing applied when processed.
| Manufacturer Part No | Order Code | Manufacturer / Description | Availability | Price For | Price | Quantity | Connector to Connector | Connector Type A | Connector Type B | Cable Length - Metric | Current Rating | Voltage Rating | Jacket Colour | Product Range | Cable Length - Imperial | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
6051.2001
|
2064391 |
Mains Power Cord, V-Lock, NEMA 5-15P to IEC 320 C13, 2 m, 10 A, 125 VAC, Black SCHURTER
You previously purchased this product.
View in Order History
|
267 in stock + Check Stock & Lead Times 267 in stock for next day delivery (UK stock)
More stock available week commencing 25/08/25 |
Each
|
1+ £9.19 £11.03 10+ £8.55 £10.26 25+ £7.90 £9.48 100+ £7.19 £8.63 250+ £6.95 £8.34 500+ £6.71 £8.05 More Pricing... |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
NEMA 5-15P to IEC 320 C13 | Mains Plug, USA, NEMA 5-15P | IEC 60320 C13 | 2m | 10A | 125VAC | Black | - | 6.6ft | |
6051.2003
|
2064392 |
Mains Power Cord, Mains Plug, Euro to IEC 60320 C13, 2 m, 10 A, 250 VAC, Black SCHURTER
You previously purchased this product.
View in Order History
|
443 in stock + Check Stock & Lead Times 443 in stock for next day delivery (UK stock)
More stock available week commencing 27/10/25 |
Each
|
1+ £9.37 £11.24 10+ £8.72 £10.46 25+ £8.06 £9.67 100+ £7.33 £8.80 250+ £7.09 £8.51 500+ £6.84 £8.21 More Pricing... |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
Mains Plug, Euro to IEC 60320 C13 | Mains Plug, Euro | IEC 60320 C13 | 2m | 10A | 250VAC | Black | - | 6.6ft | |
6051.2008
|
2064393 |

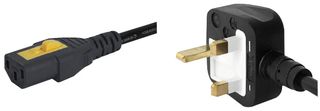

Mains Power Cord, With Fuse, Mains Plug, UK to IEC 60320 C13, 2 m, 10 A, 250 VAC, Black SCHURTER
You previously purchased this product.
View in Order History
|
81 in stock + Check Stock & Lead Times 81 in stock for next day delivery (UK stock)
More stock available week commencing 27/10/25 |
Each
|
1+ £10.10 £12.12 10+ £9.44 £11.33 25+ £8.78 £10.54 100+ £7.98 £9.58 250+ £7.72 £9.26 500+ £7.45 £8.94 More Pricing... |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
Mains Plug, UK to IEC 60320 C13 | Mains Plug, UK | IEC 60320 C13 | 2m | 10A | 250VAC | Black | - | 6.6ft | |
6051.2007
|
2064394 |
Mains Power Cord, IEC 60320 C14 to IEC 60320 C13, 2 m, 10 A, 250 VAC, Black SCHURTER
You previously purchased this product.
View in Order History
|
87 in stock + Check Stock & Lead Times 87 in stock for next day delivery (UK stock)
More stock available week commencing 27/10/25 |
Each
|
1+ £10.28 £12.34 10+ £9.21 £11.05 25+ £8.13 £9.76 100+ £7.95 £9.54 250+ £7.78 £9.34 500+ £7.60 £9.12 More Pricing... |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
IEC 60320 C14 to IEC 60320 C13 | IEC 60320 C13 | IEC 60320 C14 | 2m | 10A | 250VAC | Black | - | 6.6ft | |
6051.2121
|
2356677 |
Mains Power Cord, NEMA 5-15P to IEC 60320 C13, 3 m, 13 A, 125 VAC, White SCHURTER
You previously purchased this product.
View in Order History
|
30 in stock + Check Stock & Lead Times 30 in stock for next day delivery (UK stock)
More stock available week commencing 27/10/25 |
Each
|
1+ £12.03 £14.44 10+ £11.35 £13.62 25+ £10.67 £12.80 100+ £9.69 £11.63 250+ £9.60 £11.52 500+ £9.51 £11.41 More Pricing... |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
NEMA 5-15P to IEC 60320 C13 | IEC 60320 C13 | Mains Plug, USA, NEMA 5-15P | 3m | 13A | 125VAC | White | - | 9.8ft | |
6051.2041
|
2064385 |
Mains Power Cord, IEC 320 C19 to NEMA 5-15P, 2 m, 15 A, 125 VAC, Black SCHURTER
You previously purchased this product.
View in Order History
|
169 in stock + Check Stock & Lead Times 169 in stock for next day delivery (UK stock)
More stock available week commencing 27/10/25 |
Each
|
1+ £10.52 £12.62 10+ £9.85 £11.82 25+ £9.18 £11.02 100+ £8.34 £10.01 250+ £8.26 £9.91 500+ £8.18 £9.82 More Pricing... |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
IEC 320 C19 to NEMA 5-15P | IEC 60320 C19 | Mains Plug, USA, NEMA 5-15P | 2m | 15A | 125VAC | Black | - | 6.6ft | |
6051.2043
|
2064386 |
Mains Power Cord, Mains Plug, Euro to IEC 60320 C19, 2 m, 16 A, 250 VAC, Black SCHURTER
You previously purchased this product.
View in Order History
|
537 in stock + Check Stock & Lead Times 537 in stock for next day delivery (UK stock)
More stock available week commencing 27/10/25 |
Each
|
1+ £11.02 £13.22 10+ £10.34 £12.41 25+ £9.66 £11.59 100+ £8.78 £10.54 250+ £8.49 £10.19 500+ £8.20 £9.84 More Pricing... |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
Mains Plug, Euro to IEC 60320 C19 | IEC 60320 C19 | Mains Plug, Euro | 2m | 16A | 250VAC | Black | - | 6.6ft | |
6051.2048
|
2064387 |
Mains Power Cord, With Fuse, Mains Plug, UK to IEC 60320 C19, 2 m, 13 A, 250 VAC, Black SCHURTER
You previously purchased this product.
View in Order History
|
8 in stock + Check Stock & Lead Times 8 in stock for next day delivery (UK stock)
More stock available week commencing 27/10/25 |
Each
|
1+ £11.88 £14.26 10+ £11.20 £13.44 25+ £10.51 £12.61 100+ £9.56 £11.47 250+ £9.37 £11.24 500+ £9.18 £11.02 More Pricing... |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
Mains Plug, UK to IEC 60320 C19 | IEC 60320 C19 | Mains Plug, UK | 2m | 13A | 250VAC | Black | - | 6.6ft | |
6051.2047
|
2064389 |
Mains Power Cord, IEC 60320 C20 to IEC 60320 C19, 2 m, 16 A, 250 VAC, Black SCHURTER
You previously purchased this product.
View in Order History
|
13 in stock + Check Stock & Lead Times 13 in stock for next day delivery (UK stock)
More stock available week commencing 20/10/25 |
Each
|
1+ £11.89 £14.27 10+ £11.21 £13.45 25+ £10.52 £12.62 100+ £9.56 £11.47 250+ £9.48 £11.38 500+ £9.40 £11.28 More Pricing... |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
IEC 60320 C20 to IEC 60320 C19 | IEC 60320 C19 | IEC 60320 C20 | 2m | 16A | 250VAC | Black | - | 6.6ft |
Contract pricing display is unavailable at the moment. Prices shown are standard retail prices, orders placed will have contract pricing applied when processed.
| Manufacturer Part No | Order Code | Manufacturer / Description | Availability | Price For | Price | Quantity | IEC Connector Type | Current Rating | Voltage Rating | Contact Termination Type | Connector Mounting | Product Range | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GSF1.1201.31.21
|
2336445 |
IEC Power Connector, IEC C14 Inlet, 10 A, 250 VAC, Quick Connect, Snap-In, Flange Mount, GSF1 SCHURTER
You previously purchased this product.
View in Order History
|
33 in stock + Check Stock & Lead Times 33 in stock for next day delivery (UK stock)
More stock available week commencing 18/08/25 |
Each
|
1+ £2.83 £3.40 10+ £2.12 £2.54 100+ £1.92 £2.30 250+ £1.81 £2.17 500+ £1.76 £2.11 1000+ £1.73 £2.08 More Pricing... |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
IEC C14 Inlet | 10A | 250VAC | Quick Connect | Snap-In, Flange Mount | GSF1 | |
4707.2000.21
|
2336417 |
SCHURTER
You previously purchased this product.
View in Order History
|
No Longer Manufactured |
Each
|
null | - | 10A | 250VAC | Quick Connect | Panel Mount | - | ||
EC12.2201.001.21
|
2356676 |
Filtered IEC Power Entry Module, IEC C20, Medical, 16 A, 250 VAC, 2-Pole Switch SCHURTER
You previously purchased this product.
View in Order History
|
No Longer Stocked |
Each
|
null | - | 16A | 250VAC | Quick Connect | Flange Mount | EC12 | ||
|
5707.0603.313.21
|
2356672 |
SCHURTER
You previously purchased this product.
View in Order History
|
No Longer Stocked |
Each
|
null | - | 6A | 250VAC | Quick Connect | Panel Mount | 5707 |
